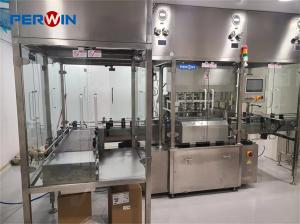

Five/Six/Seven/Eight Filling Head Animal Serum Filling Machine

Brand Name : PERWIN

Model Number : PW-ZWGX550

Place of Origin : Qidong, Jiangsu

Certification : CE, ISO, GMP, UL, TUV, SGS

MOQ : 1

Price : Negotiable

Packaging Details : Export Standard Wooden Cases

Delivery Time : 60 working days

Payment Terms : TT

Supply Ability : 10pcs/month

Filling Pressure : 0-0.3Mpa

Rejection unit : Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Correspo

Material : Stainless Steel

Capping method : 5 Sets Of Capping Units, Each Set Of Servo Motors Are Individually Controlled, Clockwise Capping And Anti-clockwise Capping

Filling Head : Five/Six/Seven/Eight

Pneumatic components : SMC Or Festo

Weight : 1000kg

Representative customers : Thermofisher, Roche, Abbott, Bovogen, Moregate, X-therma, Sciencell

Contact Now

Product Description:

The filling head lift of the Animal Sera Filling Machine is controlled by a servo motor, which allows for smooth and precise lifting. The filling program control is also advanced, with each group of pumps individually controlled to ensure accurate and consistent filling. This ensures that the animal sera is filled to exact specifications every time.

The weighing unit of the Animal Sera Filling Machine is equipped with a Mettler Load Cell and Controller, which is one of the most accurate and reliable weighing systems available. The machine is also designed for marble floor installation foundation, providing a stable and reliable base for the filling process.

Overall, the Animal Sera Filling Machine is an essential tool for the animal blood and animal sera industry. Its advanced servo technology, precise filling control, and accurate weighing system make it a reliable and efficient choice for any animal sera filling needs.

Features:

  • Product Name: Animal Sera Filling Machine
  • Filling Pressure: 0-0.3Mpa
  • Environmental monitoring: Online Particle And Planktonic Monitoring System
  • Rejection unit: Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Corresponding Cylinder. At The Top Of Each Channel, A Full Bottle Sensor Is Installed
  • Filling Accuracy: ±0.5~1%
  • Printing: Zebra Thermo Transfer Printer

Animal Serum Filler, Animal Blood Filling Machine, FBS filling machine

Technical Parameters:

Product Name Animal Serum Filler
Product Type Animal Sera Aseptic Filling Device
Filling Pressure 0-0.3Mpa
Filling Temperature 0-100℃
Working flow Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform
Environmental monitoring Online Particle And Planktonic Monitoring System
Labeling machine Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning
Filling Speed 5~30bottles/min
Power Supply 220V/380V/415V/440V
Weighing unit Mettler Load Cell + Controller. Marble Floor Installation Foundation
Weight 1000kg
Capping method 5 Sets Of Capping Units, Each Set Of Servo Motors Are Individually Controlled, Clockwise Capping And Anti-clockwise Capping

Applications:

This Animal Serum Filler has a minimum order quantity of 1 and a negotiable price. Its packaging details are export standard wooden cases, and the delivery time is 60 working days. The payment terms are TT, and the supply ability is 10pcs/month.

The filling head lift of this Animal Sera Filling Machine is servo motor control, which ensures the accuracy and stability of the filling process. The filling speed ranges from 5 to 30 bottles per minute, which can meet different production requirements.

The weighing unit of this Animal Serum Filler adopts Mettler Load Cell + Controller and is installed on a marble floor foundation, which can effectively reduce vibration and ensure accurate weighing results.

This Animal Sera Filling Machine has a filling program control system, and each group of pumps is individually controlled, which can ensure the accuracy and stability of the filling process. The labeling machine adopts mechanical synchronization of top pressure positioning mechanism, horizontal positioning mechanism, and conveyor belt, three-in-one power, accurate, and stable positioning.

In conclusion, PERWIN PW-ZWGX550 Animal Sera Aseptic Filling Device is an excellent choice for animal plasma aseptic filling line. With its advanced technology and high-quality components, it can ensure the accuracy and stability of the filling process, which can effectively improve the production efficiency and reduce the production cost. If you are looking for a reliable and efficient animal serum filler, PERWIN PW-ZWGX550 is your best choice.

Support and Services:

The Animal Sera Filling Machine is a high-quality product designed to streamline the process of filling serum into containers. Our technical support and services for this product include:

  • Installation and setup assistance
  • Training for operators and maintenance personnel
  • Regular maintenance and calibration services
  • 24/7 technical support and troubleshooting
  • Product upgrades and customization options

We are committed to providing our customers with reliable and efficient technical support and services to ensure the optimal performance of their Animal Sera Filling Machine.
